Topless Glass Railing System

Infinity Topless

Overview

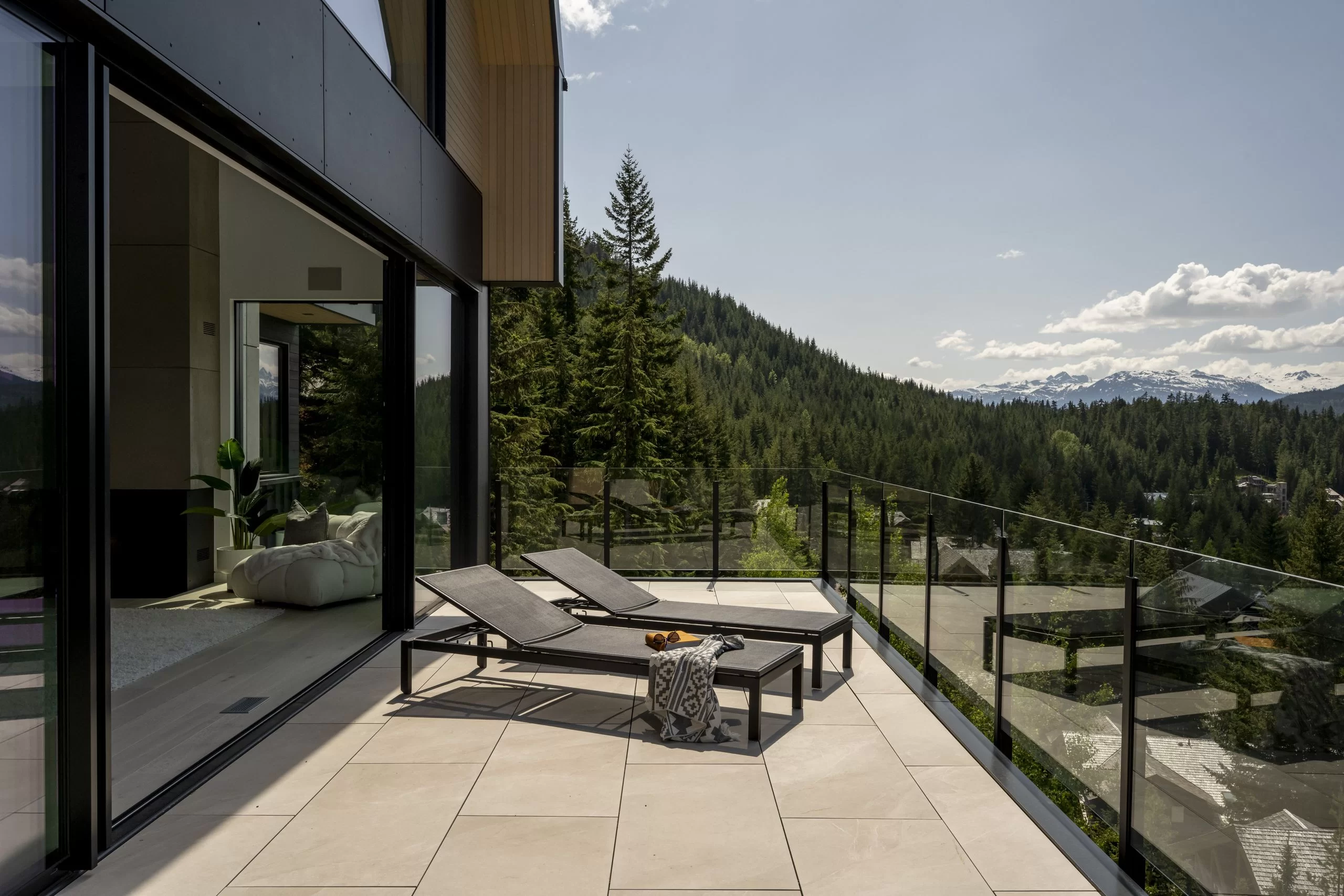

Enhance breathtaking views with Innovative Aluminum's Infinity topless glass railing system, a completely unique and stunning advance in aluminum and glass railings. Innovative's Infinity topless glass railing system eliminates upper and lower rails, providing unobstructed "million dollar" views.

Technical
Specifications

Topless Glass Railing System — engineered for precision, built for lasting performance.

Specifications

◆System: Infinity topless glass railing system

◆Glass Thickness: 12mm tempered safety glass & 13mm tempered & laminated safety glass

◆Post Spacing: Up to 72" (6 ft) on center

◆Rail Height: 36" & 42"

◆Mounting: Top mount, fascia mount, or core mount

◆Alloys Used: 6061-T6 & 6005-T5

◆Finishes: 14 standard colours + custom available

◆Code Compliance: NBC (Canada) and IRC (US)

◆Warranty: 20 Year structural & 10 Year Limited Powder Coating (residential) / 5 Year (commercial)

Code Compliance

Engineered for Canadian and US codes

Our patent-pending designs are engineered to meet current Canadian and US residential building codes (National Building Code of Canada 2020 and International Residential Codes 2021). Surface, fascia, and core mounted glass systems are engineered up to 72 inches (6 feet) on center at 42-inch rail height.

IAS aluminum railing manufacturing facility

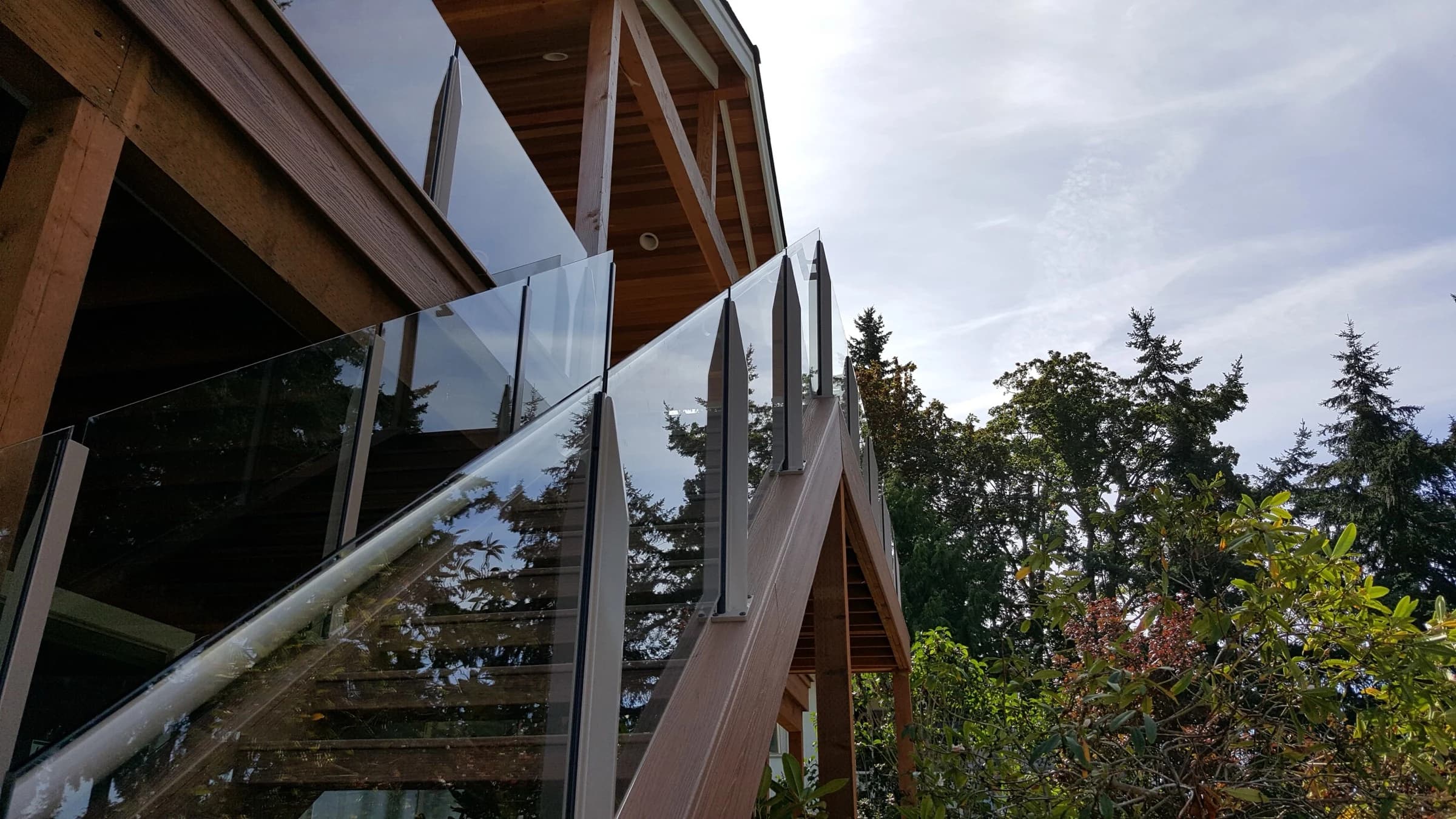

Modern home with Infinity topless glass railing overlooking lake

Innovative "puts the metal where it counts" to produce the strongest railing system possible, while at the same time taking metal out of low-stress areas to improve cost-effectiveness and allow for architecturally unique transparent railings.

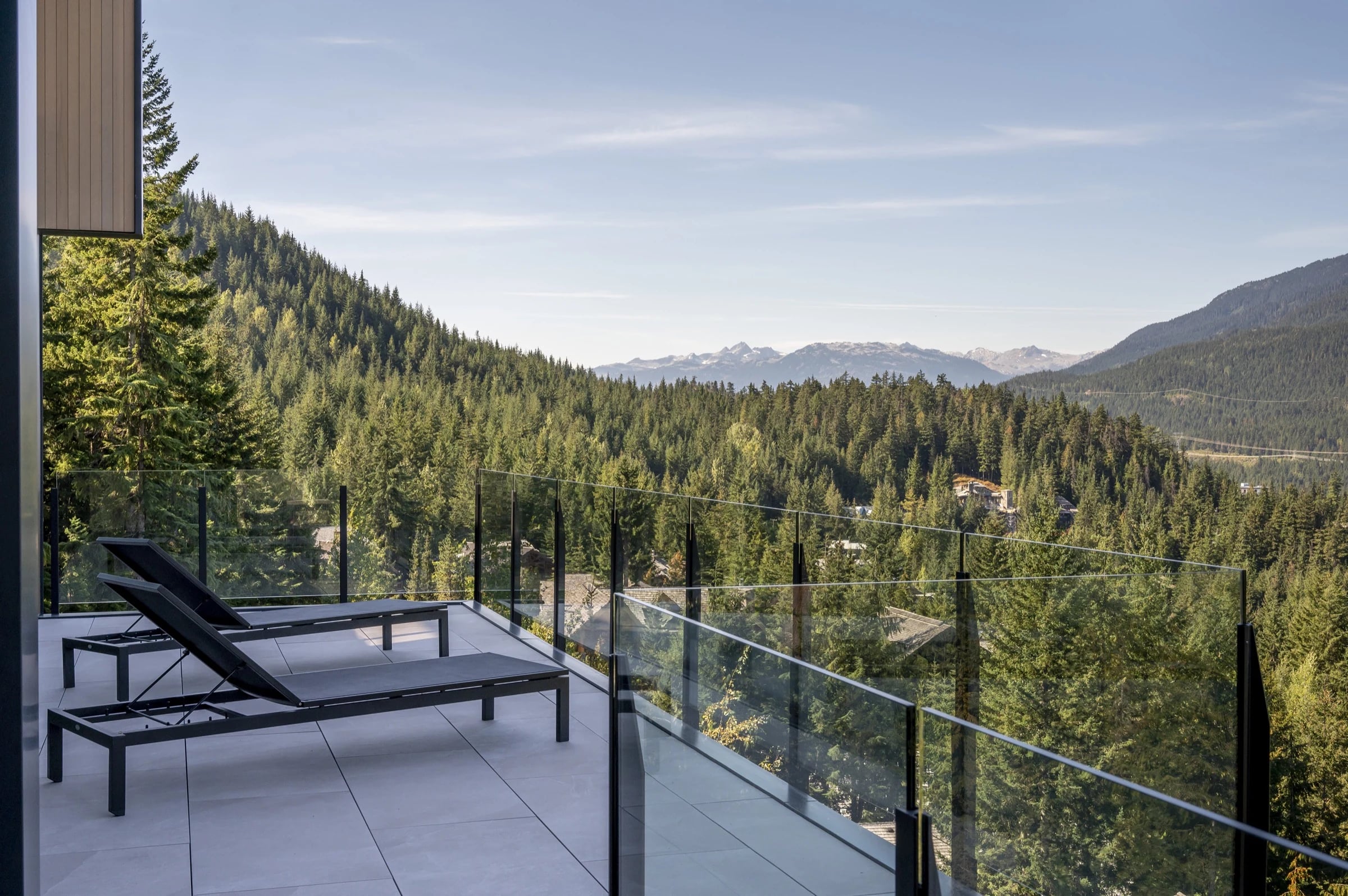

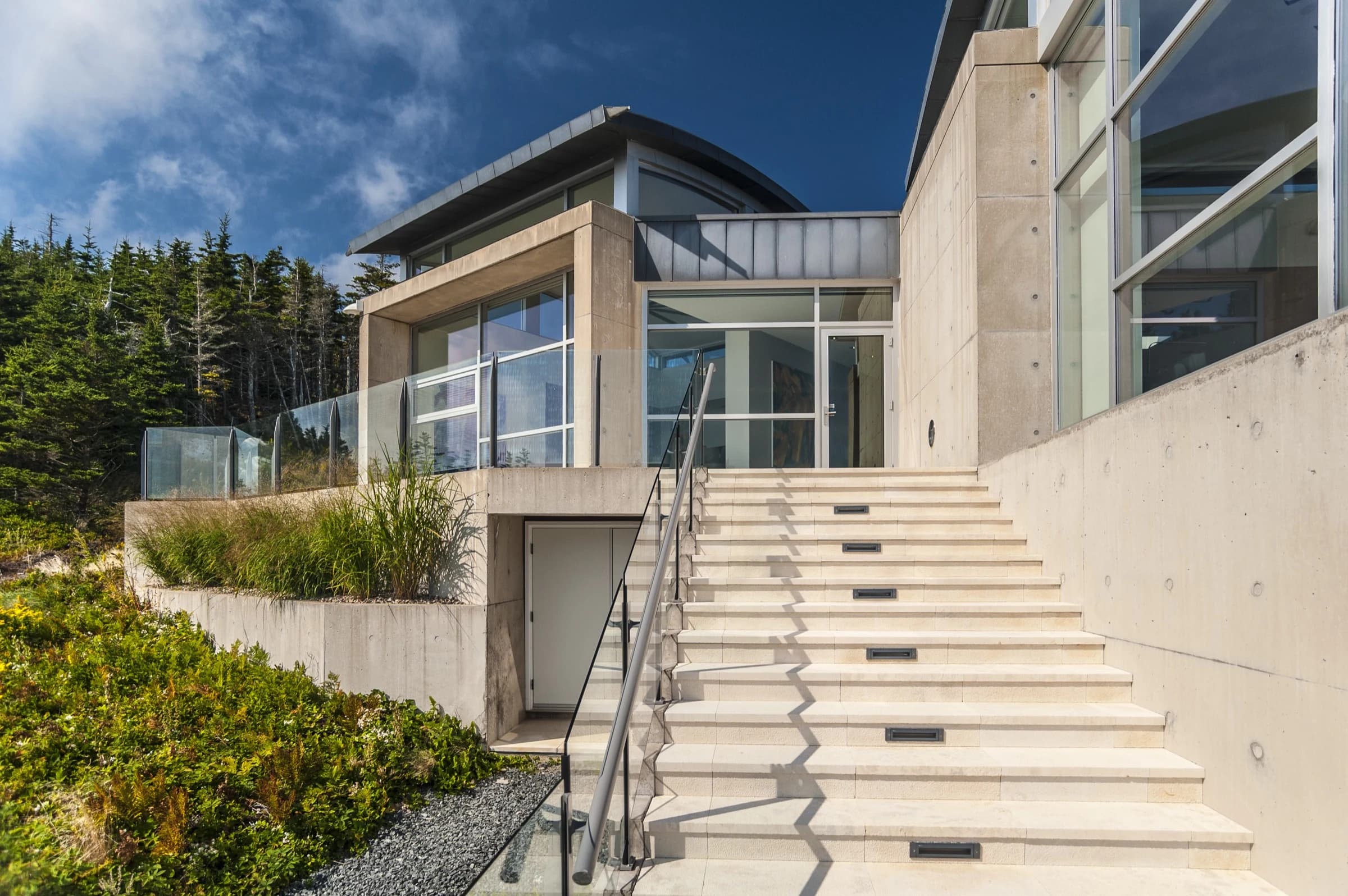

Highlights

Strength, Style & Versatility

The Infinity topless railing system strikes a balance between form and function with its modern minimalism and structural might. Its sleek design boasts no visible welds for a clean architectural look for either top mounted, fascia mounted, or core mounted applications.
